0) Make sure you have placed the plugins in the plugin manager.

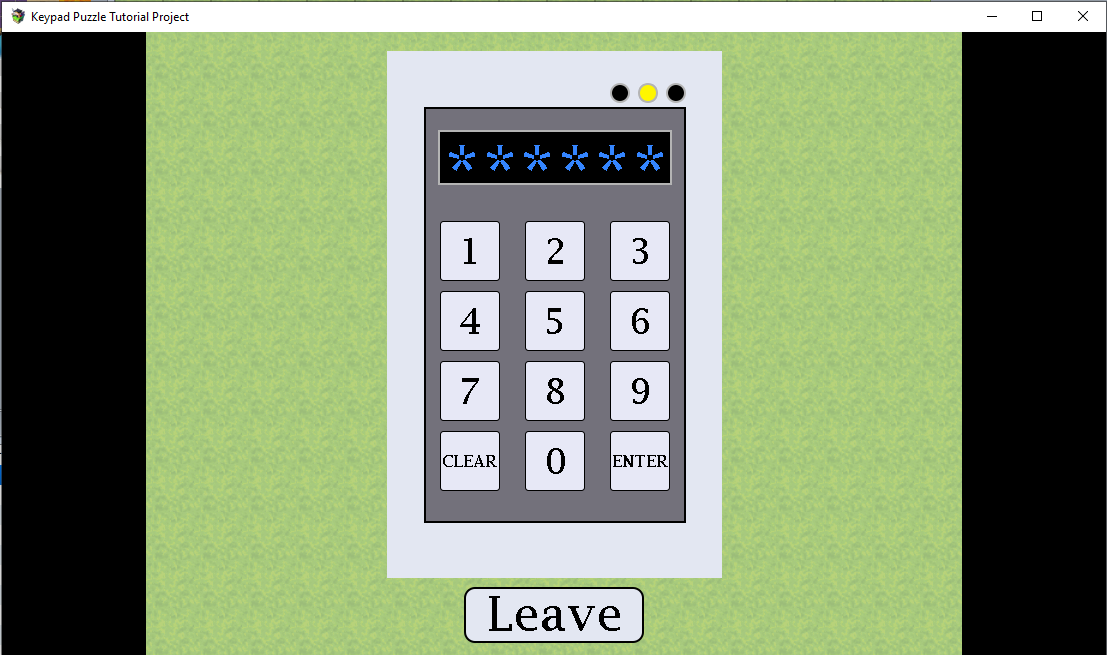

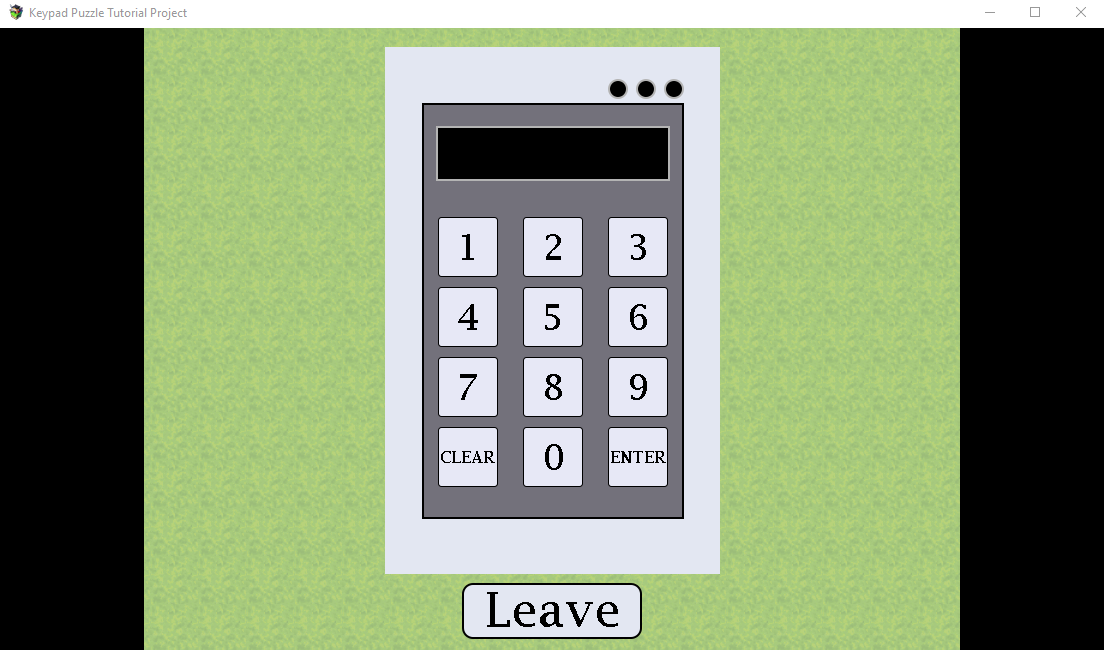

1) Make sure you have pictures for: the keypad, the leave button, buttons 1-0, the clear button, the enter button, the red light, the yellow light, the green light, and an asterisk or other symbol.
NOTE: I recommend that you put the picture number in the name for each picture (for example, 1 – Keypad or 12 – Clear).

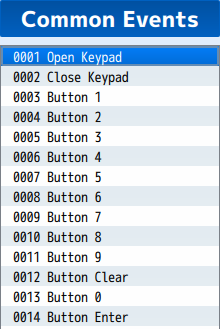

2) Add 14 new common events.

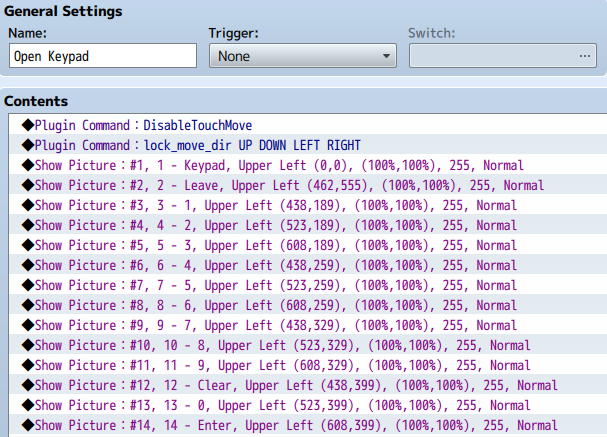

3) For common event 1, Open Keypad:

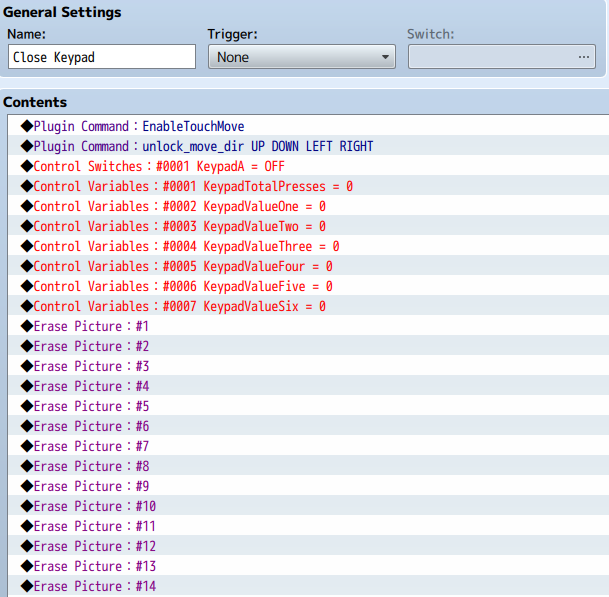

4) For common event 2, Close Keypad:

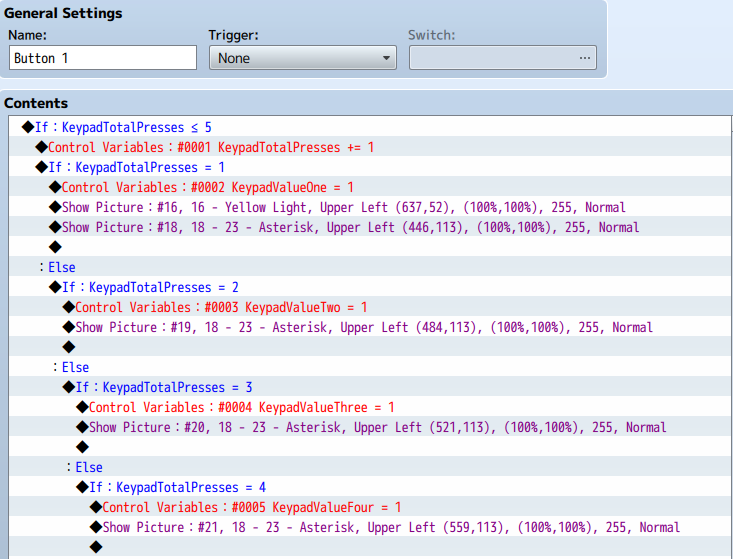

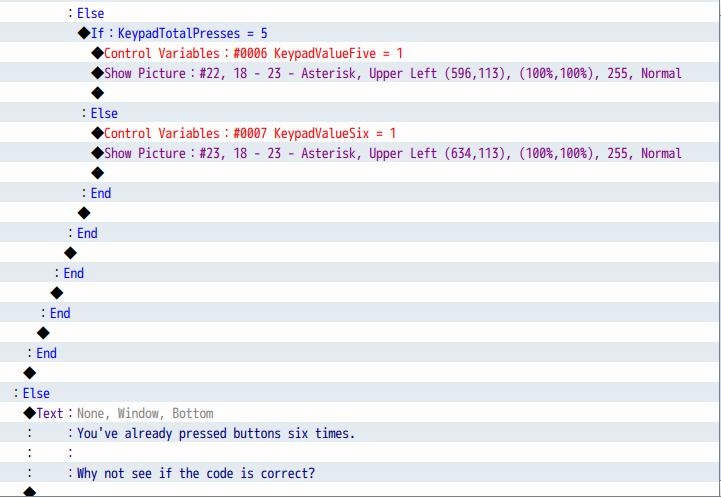

5) For common events 3-11 and 13, Button 1-9 and Button 0:






NOTE: For Button 2 through 0, make sure that the variables that set the keypad values are set to the right value (for example, KeypadValueThree is set to 3 for Button 3).

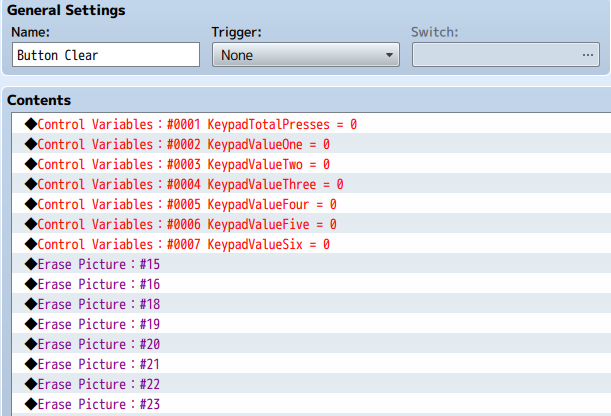

6) For common event 12, Button Clear:

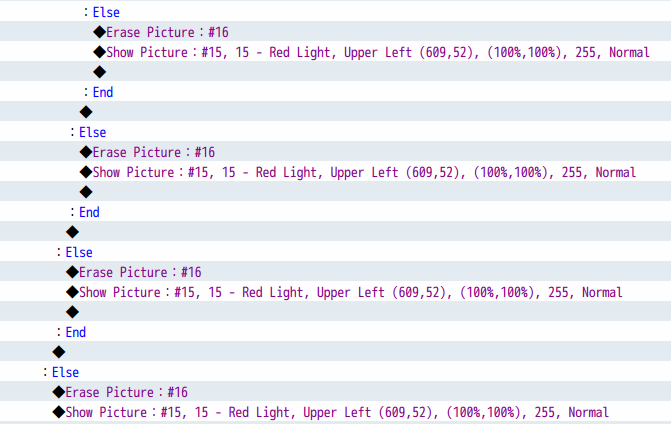

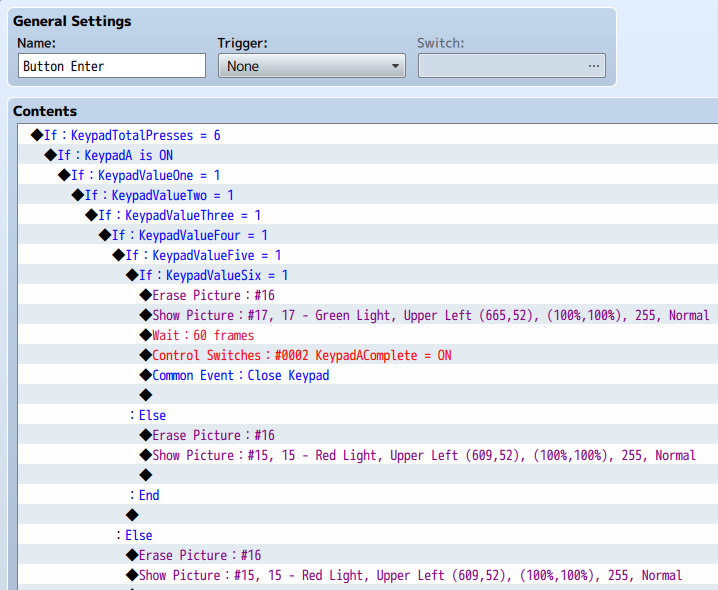

7) For common event 14, Button Enter:






NOTE: KeypadAComplete refers to the first keypad, which is turned on by the keypad event on the map. As for KeypadValueOne and the other value variables, these can be set to whatever you wish the combination to be for that keypad.
8) Make sure you have a keypad event on the map that turns on the keypad switch and opens the first common event, Open Keypad.
9) On the same event, make sure the second page is switched on if the keypad completion switch is on (for example, KeypadAComplete).
10) For each picture, make sure that the YEP_PictureCommonEvents has the common events associated with the pictures on click (for example, Picture 2 Click calls common event 2).
NOTE: Picture 1 in the tutorial is blank; no common event should be assigned to it.
11) Test it! If you encounter any problems, double-check the pictures and your spelling. You never know where you might have made a mistake. If you are still having issues, please let me know!
